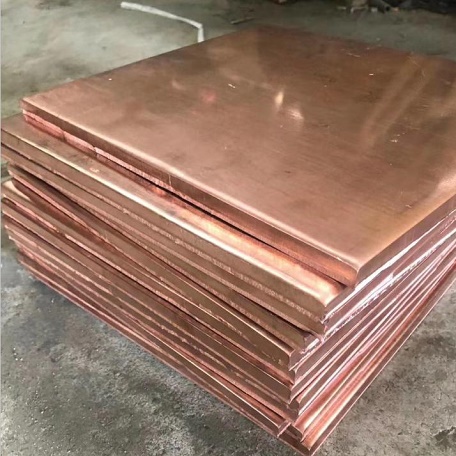

  C10100 OFHC Oxygen Free Electronic Copper Sheets (CDA 101)

  C10100 Oxygen-Free Electronic Copper, also known as OFE, is a 99.99% pure copper with 0.0005% oxygen content. C101 achieves a minimum 101% IACS conductivity rating. This copper is finished to a final form in a carefully regulated, oxygen-free environment. C10100 OFE has High ductility, high electrical and thermal conductivity and low volatility under high vacuum.
•

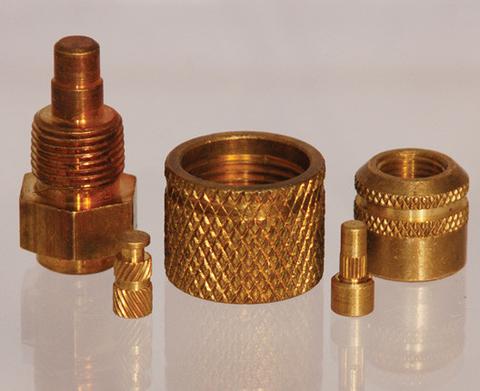

  C35300 Threaded Rolling Brass

  C35300 Threaded Rolling Brass
•
  C23000 Red Brass (CDA 230)

  ASTM B134, ASTM B135, ASTM B43, SAE J461 C23000 brass is the most durable of all metals for commercial water pipe in the practical price range. Excellent for its resistance to dezincification and season cracking for which the high copper brasses are known. Moderate strength and good retention of spring properties. Specified for underground service lines since it offers greatest corrosion resistance to all types of potable waters. Applications for C23000 brass include costume jewelry, fire hose couplings, zippers, condenser and heat exchanger tubes. Popular as an outdoor metal and has found for itself a very important place in modern architecture. Also known as Nordic Brass. The EN equivalent for this alloy isåÊCuZn15.
•
  C61400 Aluminum Bronze

  SAE J461, ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463
•
  C61300 Aluminum Bronze

  C61300 Typical Uses: Building: Wire Screening, Fasteners, Bolts, Nuts Industrial : Heat Exchanger Tube, Seamless Tubing and Pipe, Tube Sheets, Columns, Sea Water Piping, Mining Shovels, Tie Rods, Condenser Tube, Water Boxes, Corrosion Resistant Vessels, Machine Parts, Piping Systems, Acid Resistant, Gaskets, Tanks, Desalination Equipment Marine: Marine Hardware, Protective Sheathing Ordnance, Mixing Troughs, Blending Chambers Other : Ball Valve Seats
•
  C51000 Phosphor Bronze "5% A"

  EN equivalent isåÊCuSn5 ASTM B139, QQ-B750, SAE J461 C51000 Phosphor Bronze alloy possess a higher yield strength than is readily available in most cast products. Typical applications for phosphor bronze include bearings, bushings, gears, pinions, shafts, thrust washers and valve parts. C51000 Phosphor bronze can be readily brazed or soldered. Capacity for being cold worked is good.
•
  C19140 Low Leaded Nickel Copper

  C19140 Leaded Nickel Copper Typical Uses Electrical: Contacts, Sockets, Connector Pins Density: 0.320 lb/in3 at 68 F
•
  C17510 Copper

  ASTM B441 (ROD), ASTM B534 (PLATE) , RWMA Class III C17510 Beryllium Copper is an alloy used primarily in applications that require high thermal or electric conductivity. The alloy offers good strength and hardness characteristics coupled with conductivity in the range of 45-60 percent of copper with ultimate tensile and hardness properties approaching 140 ksi and RB 100 respectively.
