Pancake Coil Copper Tube

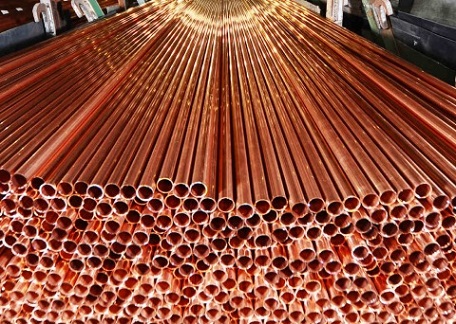

C11000 Pure Copper Tube
Short Description:
Copper tube Symbol:
| Grade | USA | UK | Germany | Japan |
| China GB | UNS | EN | DIN | JIS H |
| T2 | C11000 | Cu-ETP | E-Cu58 | C1100 |
Specification:
| Size | |
| Specifications (mm) | Wall thickness (mm) |
| 3.8 | 0.28~0.60 |
| 4.76 | 0.28~1.0 |
| 5 | 0.25~1.0 |
| 6.35 | 0.28~1.50 |
| 7~7.94 | 0.28~1.50 |
| 9~9.52 | 0.26~1.50 |
| 12~12.7 | 0.34~1.50 |
| 15.88~16 | 0.41~1.80 |
| 19.05 | 0.71~2.0 |
| 22.22 | 0.89~2.0 |
| 28.58 | 1.2~2.0 |
Send email to us
Download as PDF
| Bronze, Copper & Brass Tubes (Square / Rectangular / Round) | |||
| Parameter | Bronze Tube (C93200 / C51000) | Copper Tube (C12200 / C11000) | Brass Tube (C26000 / C38500) |
| Material Type | Bearing Bronze / Phosphor Bronze | Phosphorus Deoxidized / ETP | Cartridge Brass / Architectural Bronze |
| Standard | ASTM B505 / B139 | ASTM B88 / B75 / B280 | ASTM B135 / B587 |
| Shape Types | Square / Rectangular / Round | Square / Rectangular / Round | Square / Rectangular / Round |
| Round Tube OD | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Square Tube (A/F) | 1/4" to 6" (6 mm to 152 mm) | 1/4" to 4" (6 mm to 102 mm) | 1/4" to 4" (6 mm to 102 mm) |
| Rectangular Tube Sizes | 1/2" x 1/4" to 6" x 2" (12 x 6 mm to 152 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) |
| Wall Thickness | 0.016" to 0.500" (0.4 mm to 12.7 mm) | 0.016" to 0.200" (0.4 mm to 5.0 mm) | 0.016" to 0.250" (0.4 mm to 6.4 mm) |
| Length | 13" (330 mm) stock or 12 ft (3.66 m) | 10 ft (3 m), 20 ft (6 m), or Coiled | 12 ft (3.66 m) or Custom |
| Temper Condition | Soft (O60), Half-Hard (H02) | Soft (Annealed – O60), Hard (Drawn – H80) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Corrosion Resistance | Excellent (marine / saltwater) to Good | Excellent | Good |
| Typical Applications | Bearings, bushings, marine hardware, heat exchanger tubes, instrument components | Plumbing, HVAC, refrigeration lines, hydraulic tubes, bus bars, roofing | Decorative handrails, architectural trim, furniture tubing, heat exchanger tubes, musical instruments |
