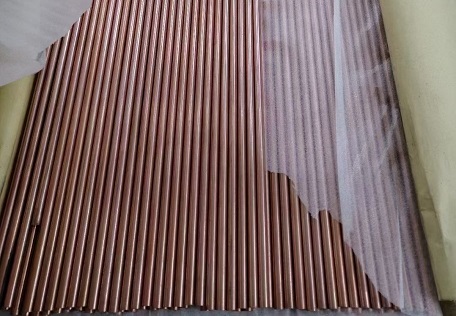

Pancake Coil Copper Tube
C10200 Oxygen Free Copper (CDA 102)
Short Description:
UNS CDA 102, SAE J461, ASTM B152, ASTM B187, ASTM B272
High Conductivity (OFHC) Copper characteristics are high ductility, high electrical and thermal conductivity, high impact strength, good creep resistance, ease of welding, and low volatility under high vacuum.
TYPICAL USES FOR C10200 OXYGEN FREE COPPER:
ELECTRICAL: Electrical Conductors, Klystrons, Microwave Tubes, Transistor Components, Lead In Wire, Coaxial Cables, Copper to Glass Seals in Electronic Appliances, Busbars, Bus Conductors, Wave Guides
INDUSTRIAL: Tubing, LP Gas Service, Tubing, Medical Gas- Oxygen, Vacuum Seals, Coaxial Tube, Billet Mold Tube, Extrusion Cans for Powder Metallurgy
Send email to us
Download as PDF
| Bronze, Copper & Brass Tubes (Square / Rectangular / Round) | |||
| Parameter | Bronze Tube (C93200 / C51000) | Copper Tube (C12200 / C11000) | Brass Tube (C26000 / C38500) |
| Material Type | Bearing Bronze / Phosphor Bronze | Phosphorus Deoxidized / ETP | Cartridge Brass / Architectural Bronze |
| Standard | ASTM B505 / B139 | ASTM B88 / B75 / B280 | ASTM B135 / B587 |
| Shape Types | Square / Rectangular / Round | Square / Rectangular / Round | Square / Rectangular / Round |
| Round Tube OD | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Square Tube (A/F) | 1/4" to 6" (6 mm to 152 mm) | 1/4" to 4" (6 mm to 102 mm) | 1/4" to 4" (6 mm to 102 mm) |
| Rectangular Tube Sizes | 1/2" x 1/4" to 6" x 2" (12 x 6 mm to 152 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) |
| Wall Thickness | 0.016" to 0.500" (0.4 mm to 12.7 mm) | 0.016" to 0.200" (0.4 mm to 5.0 mm) | 0.016" to 0.250" (0.4 mm to 6.4 mm) |
| Length | 13" (330 mm) stock or 12 ft (3.66 m) | 10 ft (3 m), 20 ft (6 m), or Coiled | 12 ft (3.66 m) or Custom |
| Temper Condition | Soft (O60), Half-Hard (H02) | Soft (Annealed – O60), Hard (Drawn – H80) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Corrosion Resistance | Excellent (marine / saltwater) to Good | Excellent | Good |
| Typical Applications | Bearings, bushings, marine hardware, heat exchanger tubes, instrument components | Plumbing, HVAC, refrigeration lines, hydraulic tubes, bus bars, roofing | Decorative handrails, architectural trim, furniture tubing, heat exchanger tubes, musical instruments |
