Pancake Coil Copper Tube

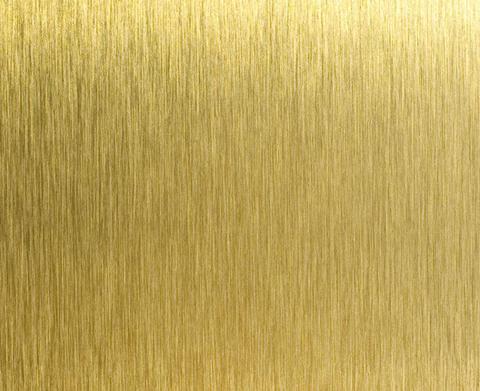

C63200 Nickel Aluminum Bronze
Short Description:
C63200 offers superior salt water corrosion resistance. It also is resistant to cavitation and erosion. Along with the advantage of pressure tightness, this high strength alloy is excellent for welding and is available in many forms at a lower cost to you
Send email to us
Download as PDF
| Technical Specifications: Copper, Bronze & Brass Sheet / Plate | |||
| Parameter | Copper Sheet / Plate (C11000 / C12200) | Bronze Sheet / Plate (C51000 / C65500) | Brass Sheet / Plate (C26000 / C28000) |
| Material Type | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Phosphor Bronze / Silicon Bronze | Cartridge Brass / Muntz Metal |
| Standard | ASTM B152 / B11 | ASTM B103 / B96 | ASTM B36 / B19 |
| Thickness Range | 0.016" to 2" (0.4 mm to 50 mm) | 0.016" to 1" (0.4 mm to 25 mm) | 0.016" to 2" (0.4 mm to 50 mm) |
| Width Range | 12" to 48" (305 mm to 1220 mm) | 12" to 36" (305 mm to 915 mm) | 12" to 48" (305 mm to 1220 mm) |
| Length | 48" to 144" (1.2 m to 3.6 m) | 48" to 120" (1.2 m to 3.0 m) | 48" to 120" (1.2 m to 3.0 m) |
| Temper Condition | Soft (O60), Half-Hard (H58), Hard (H80) | Soft (O60), Half-Hard (H02), Spring (H08) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 30 – 38 ksi (210 – 260 MPa) | 47 – 90 ksi (325 – 620 MPa) | 48 – 60 ksi (330 – 415 MPa) |
| Yield Strength (0.5% Ext.) | 10 – 30 ksi (70 – 205 MPa) | 18 – 80 ksi (125 – 550 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Corrosion Resistance | Excellent | Excellent (marine / saltwater) | Good (moderate) |
| Typical Applications | Bus bars, roofing, gaskets, heat exchangers, electrical components | Bellows, springs, marine hardware, chemical equipment, welding mesh | Radiator cores, decorative trim, architectural panels, musical instruments, ammunition casings |
