Pancake Coil Copper Tube

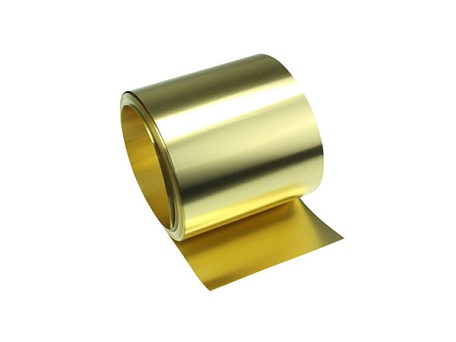

C27000 CuZn36 Brass Strip
Short Description:
C27000 CuZn35 Brass with the copper content 65%, has a high strength and plasticity, can well withstand with cold and hot pressure processing. Brass C27000 Pipes has applications in fluid transfer, architecture mechanical, automotive, electrical, chemical, plumbing, industrial and other sectors. These brass C27000 tubes have features like good corrosion resistance, high strength, and good ductility.
Send email to us
Download as PDF
| Technical Specifications: Bronze, Copper & Brass Coils | |||
| Parameter | Bronze Coil (C51000 / C52100) | Copper Coil (C11000 / C12200) | Brass Coil (C26000 / C26800) |
| Material Type | Phosphor Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Cartridge Brass / Yellow Brass |
| Standard | ASTM B103 / B465 | ASTM B152 / B11 | ASTM B36 / B587 |
| Coil Form | Strip / Sheet in Coil | Strip / Sheet in Coil, Rolled | Strip / Sheet in Coil |
| Thickness Range | 0.002" to 0.128" (0.05 mm to 3.25 mm) | 0.002" to 0.250" (0.05 mm to 6.35 mm) | 0.002" to 0.128" (0.05 mm to 3.25 mm) |
| Width Range | 0.100" to 24" (2.5 mm to 610 mm) | 0.250" to 48" (6 mm to 1220 mm) | 0.250" to 36" (6 mm to 915 mm) |
| Coil Inner Diameter (ID) | 12" to 24" (305 mm to 610 mm) | 12" to 24" (305 mm to 610 mm) | 12" to 24" (305 mm to 610 mm) |
| Coil Outer Diameter (OD) | Up to 60" (1524 mm) | Up to 60" (1524 mm) | Up to 48" (1220 mm) |
| Coil Weight | 200 – 3,000 lbs (90 – 1,360 kg) | 500 – 10,000 lbs (225 – 4,500 kg) | 300 – 4,000 lbs (135 – 1,800 kg) |
| Temper Condition | Soft (O60), Half-Hard (H02), Hard (H04), Spring (H08) | Soft (O60), Half-Hard (H58), Hard (H80) | Soft (O60), Half-Hard (H02), Hard (H04), Spring (H08) |
| Corrosion Resistance | Excellent (marine / saltwater) | Excellent | Good |
| Typical Applications | Spring contacts, switch blades, connectors, bellows, fuse clips, gaskets, EMI shielding | Roofing flashing, electrical bus bars, grounding strips, gaskets, transformer windings, heat exchanger fins | Ammunition components, radiator fins, lock hardware, decorative trim, musical instrument reeds, key stock, stampings |
