Pancake Coil Copper Tube

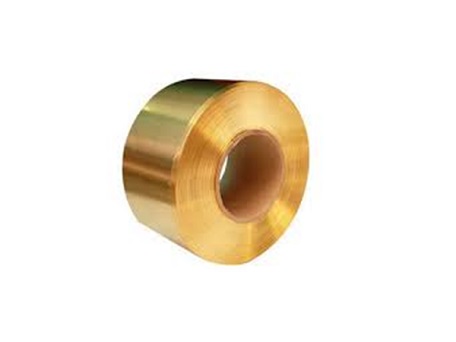

C26000 CuZn30 Brass Strip
Short Description:
C26000 Cartridge Brass, also known as 70 30, is copper alloyed with zinc. C260 Cartridge Brass has a warm yellow tone and is most commonly found in tube, sheet and plate form. C260 is commonly called Cartridge Brass because it has traditionally been for ammunition cartridges and shells. 70 30 brass has a wide range of uses, including applications in architectural, electrical, consumer, construction and plumbing industries. Cartridge Brass, also known as Spinning Brass, is capable of undergoing severe forming and drawing
Send email to us
Download as PDF
| Technical Specifications: Bronze, Copper & Brass Coils | |||
| Parameter | Bronze Coil (C51000 / C52100) | Copper Coil (C11000 / C12200) | Brass Coil (C26000 / C26800) |
| Material Type | Phosphor Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Cartridge Brass / Yellow Brass |
| Standard | ASTM B103 / B465 | ASTM B152 / B11 | ASTM B36 / B587 |
| Coil Form | Strip / Sheet in Coil | Strip / Sheet in Coil, Rolled | Strip / Sheet in Coil |
| Thickness Range | 0.002" to 0.128" (0.05 mm to 3.25 mm) | 0.002" to 0.250" (0.05 mm to 6.35 mm) | 0.002" to 0.128" (0.05 mm to 3.25 mm) |
| Width Range | 0.100" to 24" (2.5 mm to 610 mm) | 0.250" to 48" (6 mm to 1220 mm) | 0.250" to 36" (6 mm to 915 mm) |
| Coil Inner Diameter (ID) | 12" to 24" (305 mm to 610 mm) | 12" to 24" (305 mm to 610 mm) | 12" to 24" (305 mm to 610 mm) |
| Coil Outer Diameter (OD) | Up to 60" (1524 mm) | Up to 60" (1524 mm) | Up to 48" (1220 mm) |
| Coil Weight | 200 – 3,000 lbs (90 – 1,360 kg) | 500 – 10,000 lbs (225 – 4,500 kg) | 300 – 4,000 lbs (135 – 1,800 kg) |
| Temper Condition | Soft (O60), Half-Hard (H02), Hard (H04), Spring (H08) | Soft (O60), Half-Hard (H58), Hard (H80) | Soft (O60), Half-Hard (H02), Hard (H04), Spring (H08) |
| Corrosion Resistance | Excellent (marine / saltwater) | Excellent | Good |
| Typical Applications | Spring contacts, switch blades, connectors, bellows, fuse clips, gaskets, EMI shielding | Roofing flashing, electrical bus bars, grounding strips, gaskets, transformer windings, heat exchanger fins | Ammunition components, radiator fins, lock hardware, decorative trim, musical instrument reeds, key stock, stampings |
