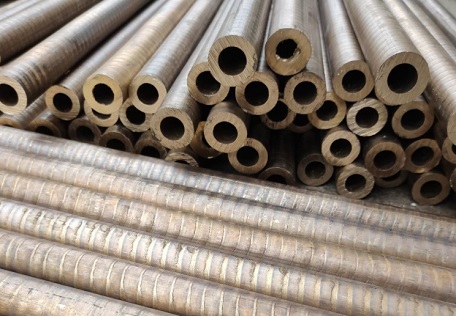

C93700 SAE 64 Bronze Tube

Short Description:

C93700 has excellent machining properties at 80%, medium strength and good corrosion resistance and will withstand mild acids as found in mine water. Bearings manufactured from C93700 have excellent wear resistance under conditions of high speed, heavy pressure and vibration, have low friction and can be used where lubrication is less than adequate and there may be minor misalignment. C93700 bearings require a hardened shaft and maximum shaft surface speeds of 4 m/sec can be tolerated
ALSBCUFEPBNIPSISSNZN
Min/Max0.0050.578.0 - 82.00.78.0 - 11.00.50.10.0050.089.0 - 11.00.8
Nominals--80.0000-9.5000----10.0000-
PRODUCT TYPETEMPER TYPE
Bearings and BushingsAMS 4827
CentrifugalAMS 4842, ASTM B271, SAE J462, J461
ContinuousASTM B505, SAE J461, J462
IngotASTM B30
SandAMS 4842, ASME SB584, ASTM B763, B66, B584, B22, SAE J461, J462


TEMPERSECT. SIZECOLD WORKTYPE MINTEMPTENSILE STRENGTHYS
0.05% UL
YS
0.02% OFFSET
YS
0.005% OFFSET
ELONG.RH
B
RH
C
RH
F
RH
30T
VH
500
BH
500
BH
3000
SHEAR
STRGTH
FATIGUE
STRGTH
IZOD
IMPACT
STRGTH
-in.%-Fksiksiksiksi%BCF30T5005003000ksiksift-lb
-mm.--CMPaMPaMPaMPa--------MPaMPaJ
As Centrifugal Cast


















M02


683012------------
M02
0SMIN2020783--15---------0
As Continous Cast


















M07


683520------------
M07
0SMIN20241138--6---------0
As Sand Cast


















M01


683012------------
M01
0SMIN2020783--15---------0
M01


68351816---------18135
M01
0TYP20241124110-20-----60-124907


PRODUCT PROPERTYUS CUSTOMARYMETRIC
Coefficient of Thermal Expansion10.3 . 10-6 per oF (68-392 F)18.5 . 10-6 per oC (20-200 C)
Density0.32 lb/in3 at 68 F8.86 gm/cm3 @ 20 C
Electrical Conductivity10 %IACS @ 68 F0.059 MegaSiemens/cm @ 20 C
Electrical Resistivity102.0 ohms-cmil/ft @ 68 F16.95 microhm-cm @ 20 C
Incipient Melting600 oF316 C
Magnetic Permeability11
Melting Point - Liquidus1705 F929 C
Melting Point - Solidus1403 F762 C
Modulas of Elasticity in Tension11000 ksi75800 MPa
Specific Gravity8.868.86
Specific Heat Capacity0.09 Btu/lb/oF at 68 F377.1 J/kg . oK at 293 K
Thermal Conductivity27.1 Btu . ft/(hr . ft2 . oF)at 68F46.9 W/m . oK at 20 C
