Pancake Coil Copper Tube

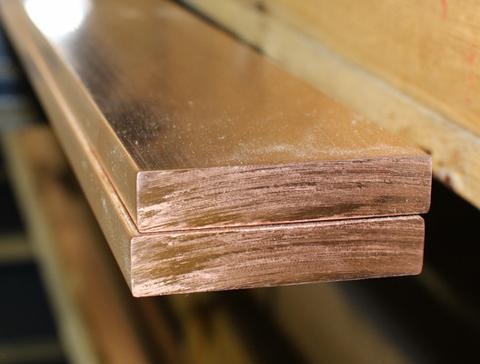

C95400 Aluminum Bronze (C954) - Per ASTM B505
Short Description:
C95400 Aluminum Bronze, also known by C954, is the most popular, all purpose aluminum bronze alloy. It provides high yield and tensile strength, good ductility, weldability and exceptional resistance to wear, fatigue and deformation under shock or overload. Typical applications include bearings, gears, valve components, wearplate and wearstrip. Conforms to continuous cast specification ASTM B505 and centrifugal cast specification ASTM B271.
Send email to us
Download as PDF
| Technical Specifications: Copper, Bronze & Brass Sheet / Plate | |||
| Parameter | Copper Sheet / Plate (C11000 / C12200) | Bronze Sheet / Plate (C51000 / C65500) | Brass Sheet / Plate (C26000 / C28000) |
| Material Type | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Phosphor Bronze / Silicon Bronze | Cartridge Brass / Muntz Metal |
| Standard | ASTM B152 / B11 | ASTM B103 / B96 | ASTM B36 / B19 |
| Thickness Range | 0.016" to 2" (0.4 mm to 50 mm) | 0.016" to 1" (0.4 mm to 25 mm) | 0.016" to 2" (0.4 mm to 50 mm) |
| Width Range | 12" to 48" (305 mm to 1220 mm) | 12" to 36" (305 mm to 915 mm) | 12" to 48" (305 mm to 1220 mm) |
| Length | 48" to 144" (1.2 m to 3.6 m) | 48" to 120" (1.2 m to 3.0 m) | 48" to 120" (1.2 m to 3.0 m) |
| Temper Condition | Soft (O60), Half-Hard (H58), Hard (H80) | Soft (O60), Half-Hard (H02), Spring (H08) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 30 – 38 ksi (210 – 260 MPa) | 47 – 90 ksi (325 – 620 MPa) | 48 – 60 ksi (330 – 415 MPa) |
| Yield Strength (0.5% Ext.) | 10 – 30 ksi (70 – 205 MPa) | 18 – 80 ksi (125 – 550 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Corrosion Resistance | Excellent | Excellent (marine / saltwater) | Good (moderate) |
| Typical Applications | Bus bars, roofing, gaskets, heat exchangers, electrical components | Bellows, springs, marine hardware, chemical equipment, welding mesh | Radiator cores, decorative trim, architectural panels, musical instruments, ammunition casings |
