C95400 Aluminum Bronze (C954) - Per ASTM B505
Short Description:
C95400 Aluminum Bronze, also known by C954, is the most popular, all purpose aluminum bronze alloy. It provides high yield and tensile strength, good ductility, weldability and exceptional resistance to wear, fatigue and deformation under shock or overload. Typical applications include bearings, gears, valve components, wearplate and wearstrip. Conforms to continuous cast specification ASTM B505 and centrifugal cast specification ASTM B271.
Send email to us
Download as PDF

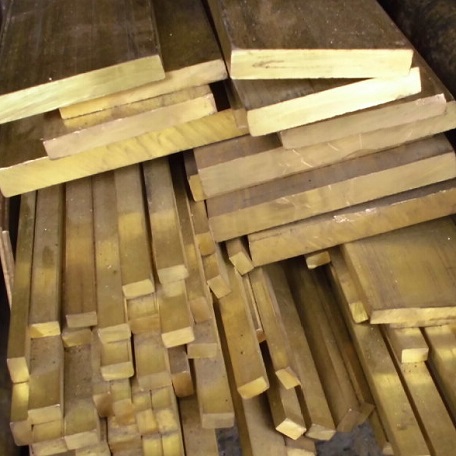

| Bronze, Copper & Brass Rectangular Bars (Flat Bars) | |||
| Parameter | Bronze Rectangular Bar (C93200 / C95400) | Copper Rectangular Bar (C11000 / C12200) | Brass Rectangular Bar (C36000 / C38500) |
| Material Type | Bearing Bronze / Aluminum Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Free-Cutting Brass / Architectural Bronze |
| Standard | ASTM B505 / B124 | ASTM B187 / B124 | ASTM B16 / B453 |
| Thickness Range | 1/8" to 4" (3 mm to 102 mm) | 1/16" to 4" (1.6 mm to 102 mm) | 1/8" to 4" (3 mm to 102 mm) |
| Width Range | 1/4" to 12" (6 mm to 305 mm) | 1/4" to 12" (6 mm to 305 mm) | 1/4" to 12" (6 mm to 305 mm) |
| Length | 13" (330 mm) or 6.5 ft (2 m) stock | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom |
| Temper Condition | As Cast / Annealed (O60) | Soft (Annealed – O60), Half-Hard (H58), Hard (H80) | Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 103,000 psi (240 – 710 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 65 ksi (330 – 450 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 52,000 psi (125 – 360 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Hardness (Brinell) | 65 – 220 HB * | 40 – 50 HB | 80 – 110 HB |
| Corrosion Resistance | Excellent (seawater) to Moderate * | Excellent | Good |
| Typical Applications | Wear plates, machine slides, bushings, bearing blocks, pump components, gear racks | Bus bars, grounding straps, electrical connectors, heat exchanger plates, transformer windings, gaskets | Valve plates, lock components, decorative trim, architectural hardware, screw machine parts, shims, nameplates |
