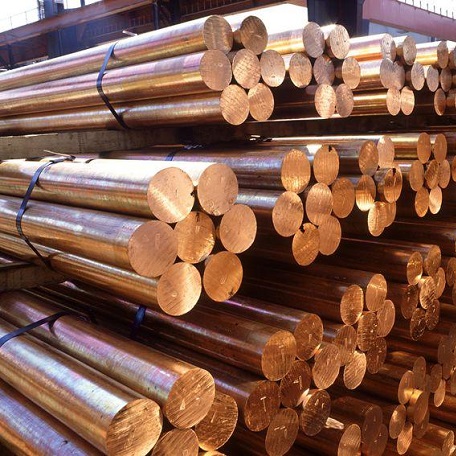

C12200 CU-DHP Alloy Copper Bar
Short Description:
C12200 has similar corrosion resistance to C11000. It gives excellent resistance to weathering and very good resistance to many chemicals. It is often used specifically for corrosion resistance. It is suitable for use with most waters, and can be used underground because it resists soil corrosion. It resists non-oxidising mineral and organic acids, caustic solutions and saline solutions.
Send email to us
Download as PDF
| Bronze, Copper & Brass Round Bars | |||
| Parameter | Bronze Round Bar (C93200 / C95400) | Copper Round Bar (C11000 / C12200) | Brass Round Bar (C36000 / C38500) |
| Material Type | Bearing Bronze / Aluminum Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Free-Cutting Brass / Architectural Bronze |
| Standard | ASTM B505 / B124 | ASTM B187 / B124 | ASTM B16 / B453 |
| Diameter Range | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Length | 13" (330 mm) or 6.5 ft (2 m) stock | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom |
| Temper Condition | As Cast / Annealed (O60) | Soft (Annealed – O60), Half-Hard (H58), Hard (H80) | Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 103,000 psi (240 – 710 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 65 ksi (330 – 450 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 52,000 psi (125 – 360 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Hardness (Brinell) | 65 – 220 HB * | 40 – 50 HB | 80 – 110 HB |
| Corrosion Resistance | Excellent (seawater) to Moderate * | Excellent | Good |
| Typical Applications | Bearings, bushings, worm gears, valve stems, pump shafts, heavy-duty pins, marine hardware | Electrical connectors, grounding rods, bus bars, heat exchanger tubes, decorative hardware, fasteners | Screw machine parts, gears, nuts, bolts, valve bodies, fittings, instrument components, ornamental trim |
