Pancake Coil Copper Tube
C12000 PHOSPHORUS - DEOXIDIZED, LOW RESIDUAL P
Short Description:
CDA 120, SAE J461
Send email to us
Download as PDF

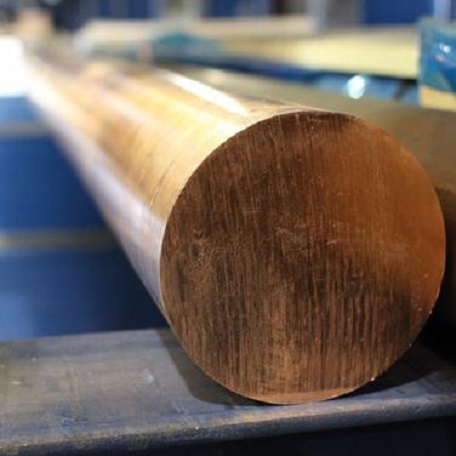

| Bronze, Copper & Brass Round Bars | |||
| Parameter | Bronze Round Bar (C93200 / C95400) | Copper Round Bar (C11000 / C12200) | Brass Round Bar (C36000 / C38500) |
| Material Type | Bearing Bronze / Aluminum Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Free-Cutting Brass / Architectural Bronze |
| Standard | ASTM B505 / B124 | ASTM B187 / B124 | ASTM B16 / B453 |
| Diameter Range | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Length | 13" (330 mm) or 6.5 ft (2 m) stock | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom |
| Temper Condition | As Cast / Annealed (O60) | Soft (Annealed – O60), Half-Hard (H58), Hard (H80) | Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 103,000 psi (240 – 710 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 65 ksi (330 – 450 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 52,000 psi (125 – 360 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Hardness (Brinell) | 65 – 220 HB * | 40 – 50 HB | 80 – 110 HB |
| Corrosion Resistance | Excellent (seawater) to Moderate * | Excellent | Good |
| Typical Applications | Bearings, bushings, worm gears, valve stems, pump shafts, heavy-duty pins, marine hardware | Electrical connectors, grounding rods, bus bars, heat exchanger tubes, decorative hardware, fasteners | Screw machine parts, gears, nuts, bolts, valve bodies, fittings, instrument components, ornamental trim |
