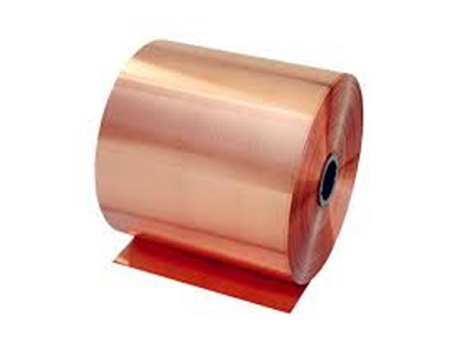

C14530 (CuTe0.02Sn0.02) Copper Coil

Short Description:

C14500, or tellurium copper, has similar mechanical properties to unalloyed, pure copper but with a higher machinability. The cutting properties of C14500 are enhanced significantly by creating a copper alloy with the addition of tellurium. Tellurium copper is also known for its high electrical conductivity characteristic.

Send email to us

Download as PDF

Composition	Cu*	Sn	Te or Se	P
	[%]	[%]	[%]	[%]
	99.9	0.003–0.023	0.003 –0.023	0.001 –0.01
*) Incl. Ag, Sn, Te and/or Se
Physical	Melting	Density	Specific	Electrical	Thermal	Mod. of	Coef. of
properties	point		heat cap. at	cond.	cond. at	elasticity	therm exp.
			20°C		20°C		at 20°C
	[°F]	[lb/in³]	[Btu/lb°F]	[%IACS]	[Btu/ft h °F]	x1000 ksi	[10^-6/°F]
	[°C]	[g/cm³]	[kJ/kgK]	[MS/m]	[W/mK]	[GPa]	[10-6/K]
	1976	0.323	0.092	94	212	17	9.8
	1080	8.9	0.385	55	368	117	17.6
The specified conductivity applies to the soft condition only
Mechanical	Temper	Tensile	Yield	Elon-	Hard-ness	min bend		min. bend
						ratio		ratio
						90°		180°
properties		strength	strength	gation 2”	HV
		Rm	Rp0.2	nominal	nominal
			nominal
		[ksi]	[ksi]			GW	BW	GW	BW
		[MPa]	[MPa]	[%]	[-]
	Soft	32-40	12	15		0	0	0	0
		221-276	83
	H02	41-49	42	12	105	0	0	1	1
		283-338	290
	H04	47-54	50	3	115	0	0	1.5	2
		324-373	345
	H06	50-60	54	2	118	0.5	0.5	1.5
		345-414	373
	H08	54-64	58	2	120	0.5	1
		373-441	400
	H10	57 min	57 min	2	120
		393 min	393 min
Other tempers are available upon request.
GW bend axis transverse to rolling direction. BW bend axis parallel to rolling direction
