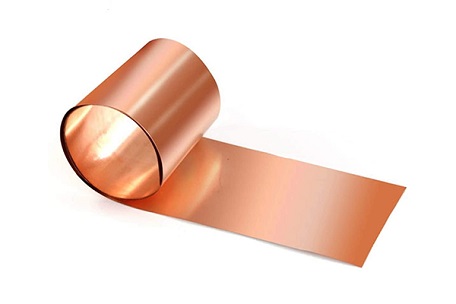

JIS H3110 C5102 Phosphor Bronze Strip

Short Description:

CONTACT US

Phone：+86-13358106555

Email：sales@jmhsteel.com

Send email to us Download as PDF
Alloy nameCompositionFeaturesApplications
C5210Cu-8SnHigh spring properties and bend formabilityConnectors, switches
C5212Cu-8SnSpring properties and bend formabilityConnectors, switches
C5191Cu-6SnSpring properties and bend formabilityConnectors, switches
C5102Cu-5SnSpring properties and bend formabilityConnectors, switches
C5111Cu-4SnSpring properties and bend formabilityConnectors, switches

Compare Composition and Properties

Composition and properties of Hyper Phosphor Bronze and phosphor bronze

Chemical Composition (wt%)

Copper Alloy NameHyper Phosphor BronzePhosphor Bronze
C5210
(HP)		C5240
(HP)		C5111C5102C5191C5212C5210
Chemical Composition (wt%)Cu : Rest
Sn : 8.0
P : 0.2		Cu : Rest
Sn : 10.0
P : 0.15		Cu : Rest
Sn : 4.0
P : 0.08		Cu : Rest
Sn : 5.0
P : 0.2		Cu : Rest
Sn : 6.0
P : 0.2		Cu : Rest
Sn : 8.0
P : 0.2		Cu : Rest
Sn : 8.0
P : 0.2

Physical Properties

Copper Alloy NameHyper Phosphor BronzePhosphor Bronze
C5210
(HP)		C5240
(HP)		C5111C5102C5191C5212C5210
Specific Gravity (g/cm3)8.808.788.878.868.838.808.80
Modulus of Elasticity (GPa)110100110110110110110
Electrical Conductivity (%IACS @20℃)12101715141313
Poisson's Ratio0.330.330.330.330.330.330.33

Mechanical Properties

Copper Alloy NameHyper Phosphor BronzePhosphor Bronze





C5210
(HP)		C5240
(HP)		C5111C5102C5191C5212C5210

Tensile Strength (MPa)O--295min305min315min345min-
1/4H--345-440375-470390-510390-510-
1/2H--410-510470-570490-610490-610470-610
H590-705650-750490-590570-665590-685590-705590-705
EH685-785750-850570min620min635min685min685-785
SH735-835850-950----735-835
ESH785-885950-1050-----
XSH835-10001000-1200-----
0.2% Yield
Strength (MPa)		O-------
1/4H-------
1/2H-------
H(565)580-690----(528)
EH(688)650-790----(667)
SH(760)780-920----(710)
ESH(823)900-1030-----
XSH(879)950-1190-----
Elongation (%)O--38min40min42min45min-
1/4H--25min28min35min40min-
1/2H--12min15min20min30min27min
H20min11min7min7min8min12min20min
EH11min9min3min4min5min5min11min
SH9min5min----9min
ESH5min1min-----
XSH1min------
Vickers
Hardness (Hv)		O-------
1/4H--80-15090-160100-160100-160-
1/2H--120-180130-190150-205150-205140-205
H185-235200-240150-200170-220180-230180-235185-235
EH210-260230-270-190min200min210min210-260
SH230-270250-290----230-270
ESH245-285270-310-----
XSH-290min-----
