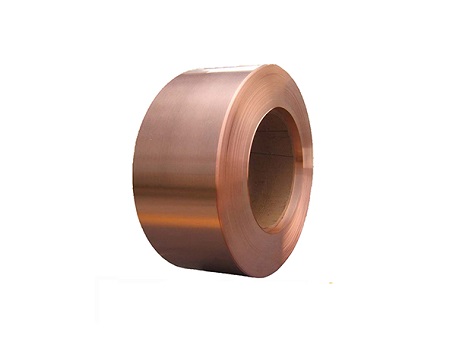

C14415 CuSn0.15 Copper Alloy Strip

[%]

[%]

99.96 min

0.10 – 0.15

*) includes Cu+Ag+Sn

Physical

Melting

Density

Specific

Electrical

Thermal

Mod. of

Coef. of

properties

point

heat cap. at

cond.

cond. at

elasticity

therm exp.

20°C

20°C

at 20°C

[°F]

[lb/in³]

[Btu/lb°F]

[%IACS]

[Btu/fth °F]

x1000 ksi

[10^-6/°F]

[°C]

[g/cm³]

[kJ/kgK]

[MS/m]

[W/mK]

[GPa]

[10-6/K]

1978

0.323

0.092

84

202

18.9

10

1081

8.93

0.385

49

350

130

18

The specified conductivity applies to the soft condition only

Mechanical

Tensile

Yield

Elongation

Hard-

min bend

min. bend

properties

strength

strength

2”

ness

ratio

ratio

Rm

Rp0.2

HV

90°

180°

min

min

[ksi]

[ksi]

GW

BW

GW

BW

[MPa]

[MPa]

[%]

[-]

O50

36-46

> 29

9

60-90

0

0

250-320

> 200

H02

44-54

> 36

4

85-110

0

0

300-370

> 250

H04

52-62

> 44

3

105-130

0

0

360-430

> 300

H06

61-71

> 51

2

120-140

1

1

420-490

> 350

Other tempers are available upon request.

GW bend axis transverse to rolling direction. BW bend axis parallel to rolling direction
