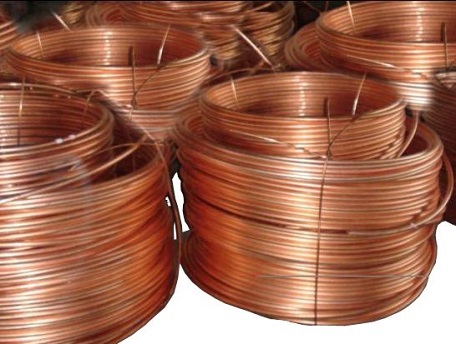

C11000 Electrolytic Tough Pitch (ETP) Copper
Short Description:
C11000 Electrolytic Tough Pitch (ETP) Copper is known for its high electrical and thermal conductivity, good corrosion resistance and solderability. C11000 copper is used for welding fixtures, anodes, bus bar in electrical power installations, ground straps, commutators and current-carrying hardware. Its inherent fabrication qualities readily permit it to be bent, soldered, drilled, peened, riveted and formed to fit almost any design specification. This copper has excellent hot workability.
Sizes Available from JMH
RECTANGLES / FLAT BAR . . . 1/8" - 2" thick through 1/2" - 8" wide
SQUARE BAR . . . . . . . . . 1/4" - 4" square
ROUND BAR . . . . . . . . . . 3/16" - 15" diameter
BUS TUBES . . . . . . . . . . . cut to size, up to 6" O.D.
SHEETS (COLD ROLLED) . . . up to 1/4" thick max
PLATES (HOT ROLLED) . . . . cut to size, up to 6" thick
C11000 Copper Alloy Specifications
End Product | Specification |
Bands, Projectile Rotating | MILITARY MIL-B-20292 |
Bar | ASME SB133, ASTM B152, SAE J461, J463 |
Bar, Bus | ASTM B187 |
Bar, Forging | ASTM B124 |
Bolts | ASTM F468 |
Brazing Filler Metal | FEDERAL QQ-B-650 |
Foil, Printed Circuits | ASTM B451 |
For, Forging | ASTM B124 |
Forgings, Die | ASTM B283 |
Nuts | ASTM F467 |
Pipe, Bus | ASTM B188 |
Plate | AMS 4500, ASTM B152, SAE J461, J463 |
Rod | ASME SB133, MILITARY MIL-C-12166, SAE J461, J463 |
Rod, Bus | ASTM B187 |
Screws | ASTM F468 |
Shapes | SAE J461, J463 |
Shapes, Bus | ASTM B187 |
Shapes, Forging | ASTM B124 |
Sheet | AMS 4500, ASTM B152, B694, SAE J463, J461 |
Sheet, Building Construction | ASTM B370 |
Sheet, Clad | ASTM B506 |
Sheet, Lead Coated | ASTM B101 |
Sheet, Printed Circuits | ASTM B451 |
Strip | AMS 4500, ASTM B694, B152, SAE J463, J461 |
Strip, Building Construction | ASTM B370 |
Strip, Clad | ASTM B506 |
Strip, Printed Circuits | ASTM B451 |
Studs | ASTM F468 |
Tube, Bus | ASTM B188 |
Tube, Welded | ASTM B447 |
Wire, Coated With Lead Alloy | ASTM B189 |
Wire, Coated With Nickel | ASTM B355 |
Wire, Coated With Silver | ASTM B298 |
Wire, Coated With Tin | ASTM B246, B33 |
Wire, Flat | AMS 4500, ASTM B272 |
Wire, Hard Drawn | ASTM B1, FEDERAL QQ-W-343 |
Wire, Medium-Hard Drawn | ASTM B2, FEDERAL QQ-W-343 |
Wire, Metallizing | MILITARY MIL-W-6712 |
Wire, Soft | ASTM B3, B738, B48, FEDERAL QQ-W-343, SAE J461, J463 |
Wire, Stranded | ASTM B8, B496, B470, B286, B229, B226, B174, B173, B172, FEDERAL QQ-B-575 |
Wire, Trolley | ASTM B47, B116 |
