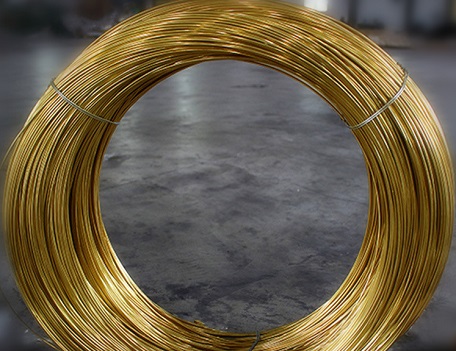

C27000 Yellow Brass "65%" (CDA 270)

Short Description:

ARCHITECTURE: Handrails, Grillwork

AUTOMOTIVE: Tanks, Radiator Cores

BUILDERS HARDWARE: Push Plates, Finish Hardware, Hinges, Stencils, Kick Plates, Locks

ELECTRICAL: Socket Shells, Screw Shells, Reflectors, Lamp Fixtures, Flashlight Shells

FASTENERS: Grommets, Eyelets, Screws, Rivets, Fasteners, Pins

INDUSTRIAL: Bead Chain, Springs, Chain

MARINE: Fasteners

PLUMBING: Sink Strainers, Plumbing Accessories

Send email to us

Download as PDF

Bronze, Copper & Brass Wire
Parameter	Bronze Wire (C51000 / C52100)	Copper Wire (C11000 / C10200)	Brass Wire (C26000 / C27000)
Material Type	Phosphor Bronze	Electrolytic Tough Pitch (ETP) / Oxygen-Free (OF)	Cartridge Brass / Yellow Brass
Standard	ASTM B159 / B206	ASTM B1 / B3 / B33	ASTM B134 / B135
Diameter Range	0.001" to 0.500" (0.025 mm to 12.7 mm)	0.001" to 1.000" (0.025 mm to 25.4 mm)	0.002" to 0.500" (0.05 mm to 12.7 mm)
Temper Condition	Soft, Half-Hard, Hard, Spring, Extra Spring	Soft, Half-Hard, Hard, Extra Hard	Soft, Half-Hard, Hard, Extra Hard
Tensile Strength (Ultimate)	50 – 140 ksi (345 – 965 MPa)	32 – 66 ksi (220 – 455 MPa)	48 – 95 ksi (330 – 655 MPa)
Yield Strength (0.2% Offset)	40 – 120 ksi (275 – 830 MPa)	10 – 55 ksi (70 – 380 MPa)	20 – 70 ksi (140 – 480 MPa)
Elongation (in 10")	1 – 40 %	1 – 45 %	3 – 50 %
Hardness	60 – 90 HRB (approx. 110 – 180 HV)	40 – 80 HRF (approx. 45 – 85 HV)	55 – 85 HRB (approx. 100 – 160 HV)
Density	0.320 lb/in³ (8.86 g/cm³)	0.323 lb/in³ (8.94 g/cm³)	0.307 lb/in³ (8.50 g/cm³)
Magnetic Properties	Non-magnetic	Non-magnetic	Non-magnetic
Solderability	Excellent	Excellent	Very Good
