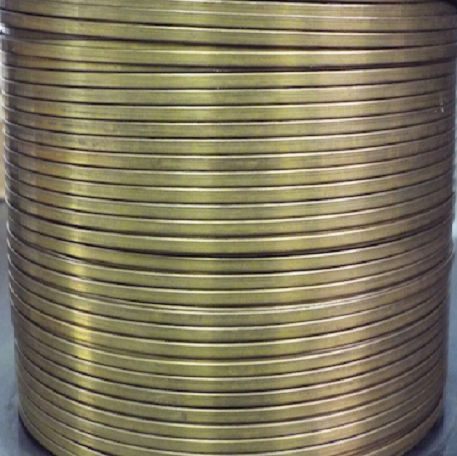

Pancake Coil Copper Tube
C65100 Low Silicon Bronze "B"
Short Description:
ASTM B98
C65100 is an engineering alloy at least as resistant to corrosion as copper itself, but much stronger, and with good fatigue endurance. 651 Bronze is an alloy noted for its brazeability, strength, corrosion resistance, and electrical properties. C65100 is one of the most weldable copper alloys. It is readily joined by all types of resistance welding. Joining by soldering or brazing is excellent. Joining by gas shielded arc welding and spot welding is also excellent, and by oxyacetylene welding, good.
C65100 finds its broadest use as rod and wire for cold headed and roll threaded bolts, wood screws and lag screws. C65100 wood screws and lag screws have unusually high strength and toughness, freedom from embrittlement, and a high degree of corrosion resistance to all types of water, saline fogs, and a wide variety of other corrosives.
651 Bronze hull and deck fastenings are the standard materials with yacht designers and the majority of builders of stock power boats. The alloy is also used for cable connectors, mast tangs, deck and pilot house hardware and equipment, welded fuel and water tanks for pleasure and commercial crafts. It is also one of the best copper alloys for pole line hardware.
C65100 nails are also widely used in boat construction and for nailing slate, heavy tile, and other materials where strength and corrosion resistance are essential.
Send email to us
Download as PDF
| Bronze, Copper & Brass Wire | |||
| Parameter | Bronze Wire (C51000 / C52100) | Copper Wire (C11000 / C10200) | Brass Wire (C26000 / C27000) |
| Material Type | Phosphor Bronze | Electrolytic Tough Pitch (ETP) / Oxygen-Free (OF) | Cartridge Brass / Yellow Brass |
| Standard | ASTM B159 / B206 | ASTM B1 / B3 / B33 | ASTM B134 / B135 |
| Diameter Range | 0.001" to 0.500" (0.025 mm to 12.7 mm) | 0.001" to 1.000" (0.025 mm to 25.4 mm) | 0.002" to 0.500" (0.05 mm to 12.7 mm) |
| Temper Condition | Soft, Half-Hard, Hard, Spring, Extra Spring | Soft, Half-Hard, Hard, Extra Hard | Soft, Half-Hard, Hard, Extra Hard |
| Tensile Strength (Ultimate) | 50 – 140 ksi (345 – 965 MPa) | 32 – 66 ksi (220 – 455 MPa) | 48 – 95 ksi (330 – 655 MPa) |
| Yield Strength (0.2% Offset) | 40 – 120 ksi (275 – 830 MPa) | 10 – 55 ksi (70 – 380 MPa) | 20 – 70 ksi (140 – 480 MPa) |
| Elongation (in 10") | 1 – 40 % | 1 – 45 % | 3 – 50 % |
| Hardness | 60 – 90 HRB (approx. 110 – 180 HV) | 40 – 80 HRF (approx. 45 – 85 HV) | 55 – 85 HRB (approx. 100 – 160 HV) |
| Density | 0.320 lb/in³ (8.86 g/cm³) | 0.323 lb/in³ (8.94 g/cm³) | 0.307 lb/in³ (8.50 g/cm³) |
| Magnetic Properties | Non-magnetic | Non-magnetic | Non-magnetic |
| Solderability | Excellent | Excellent | Very Good |
