Pancake Coil Copper Tube

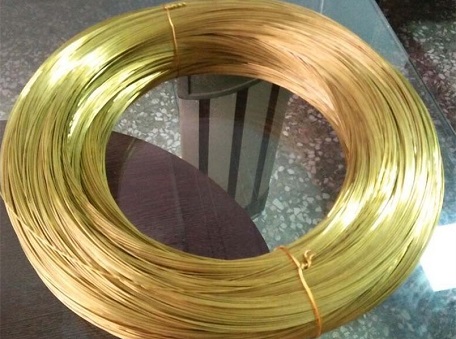

C65500 High Silicon Bronze "A"
Short Description:
C65500 is a high strength, engineering alloy that has excellent resistance to a wide range of corrosives, including fresh and salt water, most acids, alkalies, salts, and organic chemicals. However, it is not suitable for use with sulfides, nitric acid, acid chromates, or oxidizing salts such as ferric chloride. 655 Bronze has a combination of corrosion resistance, strength, resilience, and formability that makes them among the most widely used copper alloys. Noted to be non-sparking, galling resistant, and fatigue resistant. Typical applications of C65500 include electrical conduit, pump shafts, valve stems, tie rods, fasteners, marine and pole-line hardware, nuts, bolts, screws, rivets, nails, bushings, screen cloth and wire.
Send email to us
Download as PDF
| Bronze, Copper & Brass Wire | |||
| Parameter | Bronze Wire (C51000 / C52100) | Copper Wire (C11000 / C10200) | Brass Wire (C26000 / C27000) |
| Material Type | Phosphor Bronze | Electrolytic Tough Pitch (ETP) / Oxygen-Free (OF) | Cartridge Brass / Yellow Brass |
| Standard | ASTM B159 / B206 | ASTM B1 / B3 / B33 | ASTM B134 / B135 |
| Diameter Range | 0.001" to 0.500" (0.025 mm to 12.7 mm) | 0.001" to 1.000" (0.025 mm to 25.4 mm) | 0.002" to 0.500" (0.05 mm to 12.7 mm) |
| Temper Condition | Soft, Half-Hard, Hard, Spring, Extra Spring | Soft, Half-Hard, Hard, Extra Hard | Soft, Half-Hard, Hard, Extra Hard |
| Tensile Strength (Ultimate) | 50 – 140 ksi (345 – 965 MPa) | 32 – 66 ksi (220 – 455 MPa) | 48 – 95 ksi (330 – 655 MPa) |
| Yield Strength (0.2% Offset) | 40 – 120 ksi (275 – 830 MPa) | 10 – 55 ksi (70 – 380 MPa) | 20 – 70 ksi (140 – 480 MPa) |
| Elongation (in 10") | 1 – 40 % | 1 – 45 % | 3 – 50 % |
| Hardness | 60 – 90 HRB (approx. 110 – 180 HV) | 40 – 80 HRF (approx. 45 – 85 HV) | 55 – 85 HRB (approx. 100 – 160 HV) |
| Density | 0.320 lb/in³ (8.86 g/cm³) | 0.323 lb/in³ (8.94 g/cm³) | 0.307 lb/in³ (8.50 g/cm³) |
| Magnetic Properties | Non-magnetic | Non-magnetic | Non-magnetic |
| Solderability | Excellent | Excellent | Very Good |
