Pancake Coil Copper Tube
C65500 High Silicon Bronze "A"
Short Description:
C65500 is a high strength, engineering alloy that has excellent resistance to a wide range of corrosives, including fresh and salt water, most acids, alkalies, salts, and organic chemicals. However, it is not suitable for use with sulfides, nitric acid, acid chromates, or oxidizing salts such as ferric chloride. 655 Bronze has a combination of corrosion resistance, strength, resilience, and formability that makes them among the most widely used copper alloys. Noted to be non-sparking, galling resistant, and fatigue resistant. Typical applications of C65500 include electrical conduit, pump shafts, valve stems, tie rods, fasteners, marine and pole-line hardware, nuts, bolts, screws, rivets, nails, bushings, screen cloth and wire.
Send email to us
Download as PDF

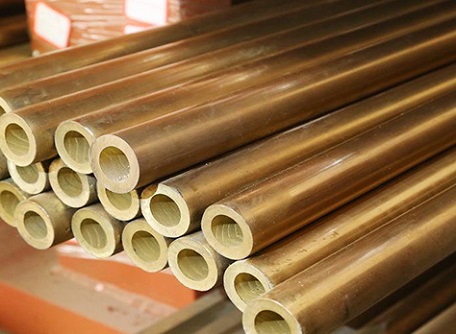

| Bronze, Copper & Brass Tubes (Square / Rectangular / Round) | |||
| Parameter | Bronze Tube (C93200 / C51000) | Copper Tube (C12200 / C11000) | Brass Tube (C26000 / C38500) |
| Material Type | Bearing Bronze / Phosphor Bronze | Phosphorus Deoxidized / ETP | Cartridge Brass / Architectural Bronze |
| Standard | ASTM B505 / B139 | ASTM B88 / B75 / B280 | ASTM B135 / B587 |
| Shape Types | Square / Rectangular / Round | Square / Rectangular / Round | Square / Rectangular / Round |
| Round Tube OD | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Square Tube (A/F) | 1/4" to 6" (6 mm to 152 mm) | 1/4" to 4" (6 mm to 102 mm) | 1/4" to 4" (6 mm to 102 mm) |
| Rectangular Tube Sizes | 1/2" x 1/4" to 6" x 2" (12 x 6 mm to 152 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) |
| Wall Thickness | 0.016" to 0.500" (0.4 mm to 12.7 mm) | 0.016" to 0.200" (0.4 mm to 5.0 mm) | 0.016" to 0.250" (0.4 mm to 6.4 mm) |
| Length | 13" (330 mm) stock or 12 ft (3.66 m) | 10 ft (3 m), 20 ft (6 m), or Coiled | 12 ft (3.66 m) or Custom |
| Temper Condition | Soft (O60), Half-Hard (H02) | Soft (Annealed – O60), Hard (Drawn – H80) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Corrosion Resistance | Excellent (marine / saltwater) to Good | Excellent | Good |
| Typical Applications | Bearings, bushings, marine hardware, heat exchanger tubes, instrument components | Plumbing, HVAC, refrigeration lines, hydraulic tubes, bus bars, roofing | Decorative handrails, architectural trim, furniture tubing, heat exchanger tubes, musical instruments |
