Pancake Coil Copper Tube

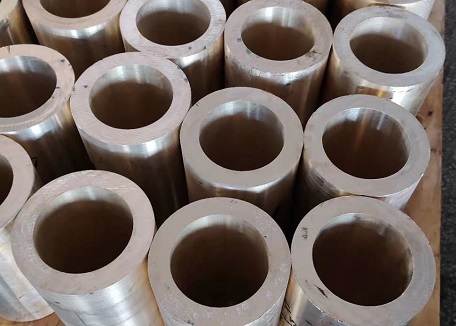

C62400 Aluminum Bronze
Short Description:
ASTM B150
C62300 and C62400 aluminum bronze applications include valve and pump components for industrial process streams, as well as for marine equipment, high strength fasteners and pole line hardware.
Send email to us
Download as PDF
| Bronze, Copper & Brass Tubes (Square / Rectangular / Round) | |||
| Parameter | Bronze Tube (C93200 / C51000) | Copper Tube (C12200 / C11000) | Brass Tube (C26000 / C38500) |
| Material Type | Bearing Bronze / Phosphor Bronze | Phosphorus Deoxidized / ETP | Cartridge Brass / Architectural Bronze |
| Standard | ASTM B505 / B139 | ASTM B88 / B75 / B280 | ASTM B135 / B587 |
| Shape Types | Square / Rectangular / Round | Square / Rectangular / Round | Square / Rectangular / Round |
| Round Tube OD | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Square Tube (A/F) | 1/4" to 6" (6 mm to 152 mm) | 1/4" to 4" (6 mm to 102 mm) | 1/4" to 4" (6 mm to 102 mm) |
| Rectangular Tube Sizes | 1/2" x 1/4" to 6" x 2" (12 x 6 mm to 152 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) | 1/2" x 1/4" to 4" x 2" (12 x 6 mm to 102 x 51 mm) |
| Wall Thickness | 0.016" to 0.500" (0.4 mm to 12.7 mm) | 0.016" to 0.200" (0.4 mm to 5.0 mm) | 0.016" to 0.250" (0.4 mm to 6.4 mm) |
| Length | 13" (330 mm) stock or 12 ft (3.66 m) | 10 ft (3 m), 20 ft (6 m), or Coiled | 12 ft (3.66 m) or Custom |
| Temper Condition | Soft (O60), Half-Hard (H02) | Soft (Annealed – O60), Hard (Drawn – H80) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Corrosion Resistance | Excellent (marine / saltwater) to Good | Excellent | Good |
| Typical Applications | Bearings, bushings, marine hardware, heat exchanger tubes, instrument components | Plumbing, HVAC, refrigeration lines, hydraulic tubes, bus bars, roofing | Decorative handrails, architectural trim, furniture tubing, heat exchanger tubes, musical instruments |
