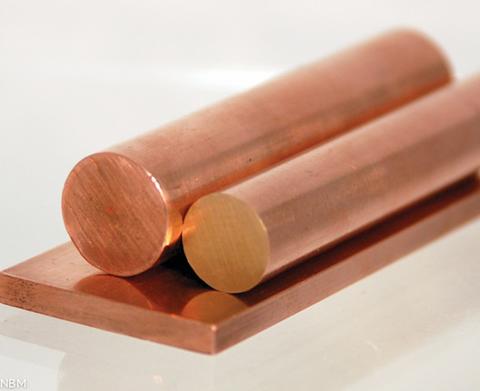

C11000 Electrolytic Tough Pitch (ETP) Copper

Short Description:

Standards: ASTM B-187, ASTM B-124, ASTM B-133, SAE 461, SAE J461, SAE J463, AMS 4500, DIN 2.0065

C11000 Electrolytic Tough Pitch (ETP) Copper is known for its high electrical and thermal conductivity, good corrosion resistance and solderability. C11000 copper is used for welding fixtures, anodes, bus bar in electrical power installations, ground straps, commutators and current-carrying hardware. Its inherent fabrication qualities readily permit it to be bent, soldered, drilled, peened, riveted and formed to fit almost any design specification. This copper has excellent hot workability.


Send email to us Download as PDF

Sizes Available from JMH Metals

RECTANGLES / FLAT BAR . . . 1/8" - 2" thick through 1/2" - 8" wide

SQUARE BAR . . . . . . . . . 1/4" - 4" square

ROUND BAR . . . . . . . . . . 3/16" - 15" diameter

BUS TUBES . . . . . . . . . . . cut to size, up to 6" O.D.

SHEETS (COLD ROLLED) . . . up to 1/4" thick max

PLATES (HOT ROLLED) . . . . cut to size, up to 6" thick

C11000 Copper Alloy Specifications

End ProductSpecification
Bands, Projectile RotatingMILITARY MIL-B-20292
BarASME SB133, ASTM B152, SAE J461, J463
Bar, BusASTM B187
Bar, ForgingASTM B124
BoltsASTM F468
Brazing Filler MetalFEDERAL QQ-B-650
Foil, Printed CircuitsASTM B451
For, ForgingASTM B124
Forgings, DieASTM B283
NutsASTM F467
Pipe, BusASTM B188
PlateAMS 4500, ASTM B152, SAE J461, J463
RodASME SB133, MILITARY MIL-C-12166, SAE J461, J463
Rod, BusASTM B187
ScrewsASTM F468
ShapesSAE J461, J463
Shapes, BusASTM B187
Shapes, ForgingASTM B124
SheetAMS 4500, ASTM B152, B694, SAE J463, J461
Sheet, Building ConstructionASTM B370
Sheet, CladASTM B506
Sheet, Lead CoatedASTM B101
Sheet, Printed CircuitsASTM B451
StripAMS 4500, ASTM B694, B152, SAE J463, J461
Strip, Building ConstructionASTM B370
Strip, CladASTM B506
Strip, Printed CircuitsASTM B451
StudsASTM F468
Tube, BusASTM B188
Tube, WeldedASTM B447
Wire, Coated With Lead AlloyASTM B189
Wire, Coated With NickelASTM B355
Wire, Coated With SilverASTM B298
Wire, Coated With TinASTM B246, B33
Wire, FlatAMS 4500, ASTM B272
Wire, Hard DrawnASTM B1, FEDERAL QQ-W-343
Wire, Medium-Hard DrawnASTM B2, FEDERAL QQ-W-343
Wire, MetallizingMILITARY MIL-W-6712
Wire, SoftASTM B3, B738, B48, FEDERAL QQ-W-343, SAE J461, J463
Wire, StrandedASTM B8, B496, B470, B286, B229, B226, B174, B173, B172, FEDERAL QQ-B-575
Wire, TrolleyASTM B47, B116


Chemical Composition


CUO
Min/Max99.90 min
Nominals-0.0400


Temper

PRODUCT TYPETEMPER TYPE
Bands, Projectile RotatingMILITARY MIL-B-20292
BarASME SB133, ASTM B152, SAE J461, J463
Bar, BusASTM B187
Bar, ForgingASTM B124
BoltsASTM F468
Brazing Filler MetalFEDERAL QQ-B-650
Foil, Printed CircuitsASTM B451
For, ForgingASTM B124
Forgings, DieASTM B283
NutsASTM F467
Pipe, BusASTM B188
PlateAMS 4500, ASTM B152, SAE J461, J463
RodASME SB133, MILITARY MIL-C-12166, SAE J461, J463
Rod, BusASTM B187
ScrewsASTM F468
ShapesSAE J461, J463
Shapes, BusASTM B187
Shapes, ForgingASTM B124
SheetAMS 4500, ASTM B152, B694, SAE J463, J461
Sheet, Building ConstructionASTM B370
Sheet, CladASTM B506
Sheet, Lead CoatedASTM B101
Sheet, Printed CircuitsASTM B451
StripAMS 4500, ASTM B694, B152, SAE J463, J461
Strip, Building ConstructionASTM B370
Strip, CladASTM B506
Strip, Printed CircuitsASTM B451
StudsASTM F468
Tube, BusASTM B188
Tube, WeldedASTM B447
Wire, Coated With Lead AlloyASTM B189
Wire, Coated With NickelASTM B355
Wire, Coated With SilverASTM B298
Wire, Coated With TinASTM B246, B33
Wire, FlatAMS 4500, ASTM B272
Wire, Hard DrawnASTM B1, FEDERAL QQ-W-343
Wire, Medium-Hard DrawnASTM B2, FEDERAL QQ-W-343
Wire, MetallizingMILITARY MIL-W-6712
Wire, SoftASTM B3, B738, B48, FEDERAL QQ-W-343, SAE J461, J463
Wire, StrandedASTM B8, B496, B470, B286, B229, B226, B174, B173, B172, FEDERAL QQ-B-575
Wire, TrolleyASTM B47, B116


Mechanical Properties

TEMPERSECT. SIZECOLD WORKTYPE MINTEMPTENSILE STRENGTHYS
0.05% UL		YS
0.02% OFFSET		YS
0.005% OFFSET		ELONG.RH
B		RH
C		RH
F		RH
30T		VH
500		BH
500		BH
3000		SHEAR
STRGTH		FATIGUE
STRGTH		IZOD
IMPACT
STRGTH
-in.%-Fksiksiksiksi%BCF30T5005003000ksiksift-lb
-mm.--CMPaMPaMPaMPa--------MPaMPaJ
Flat Products
H040.04

685045----------28-
H0410TYP20345310--650-9057---193-0
H080.04

685550----------2914
H0810TYP20379345--460-9463---200970
H010.03

683830----------25-
H010.640TYP20262207--3525-70----172-0
H020.04

684236----------2613
H0210TYP20290248--1440-8450---179900
M200.03

683210----------22-
M200.640TYP2022169--50--40----152-0
H041

684540----------26-
H0425.40TYP20310276--2045-85----179-0
OS0500.03

683210----------22-
OS0500.640TYP2022169--50--40----152-0
H000.03

683628----------25-
H000.640TYP20248193--4010-60----172-0
M200.04

683410----------23-
M2010TYP2023469--45--45----159-0
OS0500.04

683210----------22-
OS05010TYP2022169--45--40----152-0
OS0250.04

683411----------2311
OS02510TYP2023476--45--45----159760
H100.04

685753----------29-
H1010TYP20393365--462-9564---200-0
H010.04

683830----------25-
H0110TYP20262207--2525-7036---172-0
H000.04

683628----------25-
H0010TYP20248193--3010-6025---172-0
H040.03

685045----------28-
H040.640TYP20345310--1250-90----193-0
Rod
H041

684844----------2717
H0425.435TYP20331303--1647-87----1861170
H042.01

684540----------26-
H045116TYP20310276--2045-85----179-0
M201

683210----------22-
M2025.40TYP2022169--55--40----152-0
OS0501

683210----------22-
OS05025.40TYP2022169--55--40----152-0
H040.25

685550----------29-
H046.3540TYP20379345--1060-94----200-0
Shapes
M300.5

683210----------22-
M3012.70TYP2022169--50--50----152-0
M200.5

683210----------22-
M2012.70TYP2022169--50--40----152-0
H040.5

685532----------26-
H0412.715TYP20376221--3035------179-0
OS0500.5

683210----------22-
OS05012.70TYP2022169--50--40----152-0
Tube
OS0500.06

683210----------22-
OS0501.650TYP2022169--45--40----152-0
OS0250.06

683411----------23-
OS0251.650TYP2023476--45--45----159-0
H800.06

685550----------29-
H801.6540TYP20379345--860-9563---200-0
H550.06

684032----------26-
H551.6515TYP20276221--2535-7745---179-0
Wire
H040.08

6855-----------29-
H0420TYP20379---1-------200-0
OS0500.08

6835-----------24-
OS05020TYP20241---35-------165-0
H080.08

6866-----------33-
H0820TYP20455---1-------228-0


Physical Properties

PRODUCT PROPERTYUS CUSTOMARYMETRIC
Coefficient of Thermal Expansion9.4 . 10 6? per å¡F (68-212 F)16.9 . 10 6? per å¡C (20-100 C)
Coefficient of Thermal Expansion9.6 . 10 6? per å¡F (68-392 F)17.3 . 10 6? per å¡C (20-200 C)
Coefficient of Thermal Expansion9.8 . 10 6? per å¡F (68-572 F)17.6 . 10 6? per å¡C (20-300 C)
Density0.322 lb/in3 @ 68 F8.91 gm/cm3 @ 20 C
Electrical Conductivity101%IACS @ 68 F0.591 MegaSiemens/cm @ 20 C
Electrical Resistivity10.3 ohms-cmil/ft @ 68 F1.71 microhm-cm @ 20 C
Melting Point Liquid US1981 F1083 C
Melting Point Solid US1949 F1065 C
Modulas of Elasticity in Tension17000 ksi117000 MPa
Modulas of Rigidity6400 ksi44130 MPa
Specific Gravity8.918.91
Specific Heat Capacity0.092 Btu/lb/å¡F at 68 F393.5 J/kg . å¡K at 293 K
Thermal Conductivity226.0 Btu . ft/(hr . Ft2 . å¡F) at 68 F391.1W/m . å¡K at 20 C


Fabrication

JOINING TECHNIQUESUITABILITY
BrazingGood
Butt WeldGood
Capacity for Being Cold WorkedExcellent
Capacity for Being Hot FormedExcellent
Coated Metal Arc WeldingNot Recommended
Forgeability Rating65
Gas Sheilded Arc WeldingFair
Machinability rating20
Oxyacetylene WeldingNot Recommended
Seam WeldNot Recommended
SolderingExcellent
Spot WeldNot Recommended
