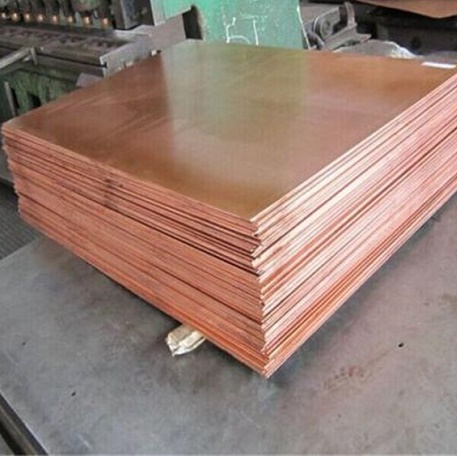

C18150 CuCrZr/CuCr1Zr CHROMIUM ZIRCONIUM COPPER SHEET
Short Description:
The chemical composition of C18150 is 1% chromium, 98.85% copper, and 0.15% zirconium. The addition of Zirconium to chromium copper improves creep resistance at high operating temperatures and reduces sticking of electrodes to the work during spot welding of galvanized or coated materials. The physical copper properties of C18150 include a density of 8.89 grams per cubic centimeter.
Send email to us
Download as PDFAPPLICATIONS OF CHROMIUM ZIRCONIUM
Chromium zirconium has some of the most extensive applications. Here are just a few examples of the applications of this metal type:
Back-up electrodes
Nut & stud welding electrodes
Caps & shanks
Circuit breaker parts
Collector connector, collector housing, connector bar, connectors, and connection lead bars
Cross wire welding electrodes & components
Electrode holders & adaptors
Flash & butt welding dies
Power generation products
Resistance welding electrodes
Spot welding electrodes
Transmission devices
Welding arms, connectors, and platens.
C18150 MSDS
TYPICAL USES OF CHROMIUM ZIRCONIUM
STRESS RELAXATION
Chromium zirconium is a unique copper alloy that’s able to decrease stress under constant strain. It’s typically used with steel bolts in turbine casting, which must be straightened and typed.
MACHINING
Machining includes a variety of processes in which a raw piece of material is cut into a desired final shape and size by a controlled material-removal process. The machinability rating of C18150 is 30% which is moderate. The use of a cutting tool with a chip breaker is recommended.
MATERIAL PROPERTIES OF C18150
The C18150 copper alloy has a combination of properties as below:
Tensile strength: 220-540 N/mm2
0.2% Proof strength: 100-440 N/mm2
% Elongation: 35-5
Hardness (HV): 55-175
Electrical conductivity: 80% IACS
Thermal conductivity: 300 W/moC (compared to copper 394 W/moC)
FABRICATION PROPERTIES
The most common fabrication properties of C18150 are bending, cold heading, and machining. The machinability rating of C18150 is 20. The fabrication properties of C18150 Copper can be categorized as either good, not recommended, fair, or excellent. The properties are as follows:
Good for:Soldering
Brazing
Gas shielded arc welding
Excellent for: Capacity for being cold worked
Fair for:Butt welding
Not recommended for:Oxyacetylene welding
Coated metal arc welding
Spot Welding
Seam Welding
C18150 chromium zirconium copper is a unique copper with the addition of zirconium. It is readily available across North America and has extensive uses.
