Pancake Coil Copper Tube

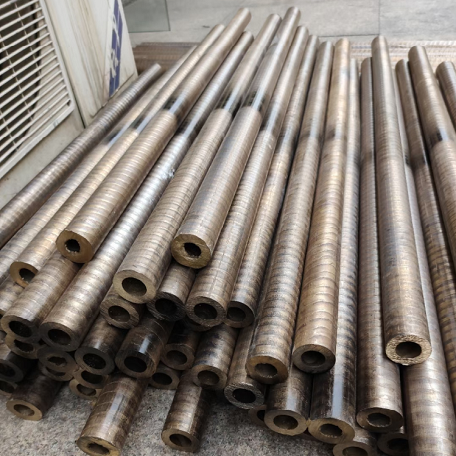

C83600 Bronze Pipe
Short Description:
C83600 Leaded Red Brass, SAE 40 Alloy Information Page
C83600 Leaded Red Brass, SAE 40 in Solid Bar Stock, Cored Bars and in Rectangle / Plate. We offer these different shapes in three different Methods of Manufacture.
Send email to us
Download as PDF
| Bronze, Copper & Brass Tubes (Round) | |||
| Parameter | Bronze Tube (C93200 / C51000) | Copper Tube (C12200 / C11000) | Brass Tube (C26000 / C38500) |
| Material Type | Bearing Bronze / Phosphor Bronze | Phosphorus Deoxidized / ETP | Cartridge Brass / Architectural Bronze |
| Standard | ASTM B505 / B139 | ASTM B88 / B75 / B280 | ASTM B135 / B587 |
| Outside Diameter (OD) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Wall Thickness | 0.016" to 0.500" (0.4 mm to 12.7 mm) | 0.016" to 0.200" (0.4 mm to 5.0 mm) | 0.016" to 0.250" (0.4 mm to 6.4 mm) |
| Length | 13" (330 mm) stock or 12 ft (3.66 m) | 10 ft (3 m), 20 ft (6 m), or Coiled | 12 ft (3.66 m) or Custom |
| Temper Condition | Soft (O60), Half-Hard (H02) | Soft (Annealed – O60), Hard (Drawn – H80) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 90,000 psi (240 – 620 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 60 ksi (330 – 415 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 80,000 psi (125 – 550 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Corrosion Resistance | Excellent (marine / saltwater) to Good | Excellent | Good |
| Typical Applications | Bearings, bushings, marine hardware, heat exchanger tubes, instrument components, pump sleeves | Plumbing, HVAC, refrigeration lines, hydraulic tubes, bus bars, roofing, compressed air lines | Decorative handrails, architectural trim, furniture tubing, heat exchanger tubes, musical instruments, condenser tubes |
