Pancake Coil Copper Tube

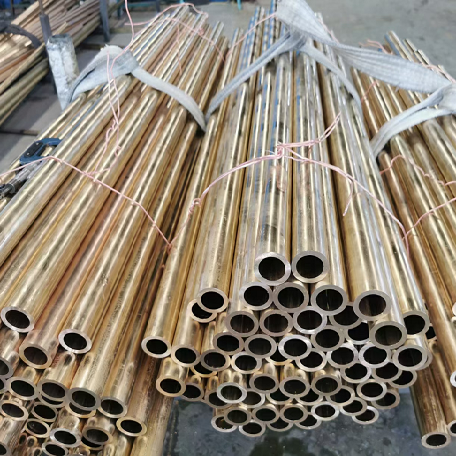

C61900 Aluminum Bronze Tube
Short Description:
Copper Alloy Qal9-4 C61900 Cual8fe 2.0930 Aluminum Bronze Pipe Tube
Aluminum bronze tube for heat exchanger is the aluminum bronze tube, with characteristics of higher intensity, excellent abrasion performance and splendid cold and hot processing, which is extensively applied to heat exchanger, condenser, corrosion-resisting container and marine composite board...
Send email to us
Download as PDF
| Bronze, Copper & Brass Tubes (Round) | |||
| Parameter | Bronze Tube (C93200 / C51000) | Copper Tube (C12200 / C11000) | Brass Tube (C26000 / C38500) |
| Material Type | Bearing Bronze / Phosphor Bronze | Phosphorus Deoxidized / ETP | Cartridge Brass / Architectural Bronze |
| Standard | ASTM B505 / B139 | ASTM B88 / B75 / B280 | ASTM B135 / B587 |
| Outside Diameter (OD) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Wall Thickness | 0.016" to 0.500" (0.4 mm to 12.7 mm) | 0.016" to 0.200" (0.4 mm to 5.0 mm) | 0.016" to 0.250" (0.4 mm to 6.4 mm) |
| Length | 13" (330 mm) stock or 12 ft (3.66 m) | 10 ft (3 m), 20 ft (6 m), or Coiled | 12 ft (3.66 m) or Custom |
| Temper Condition | Soft (O60), Half-Hard (H02) | Soft (Annealed – O60), Hard (Drawn – H80) | Soft (O60), Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 90,000 psi (240 – 620 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 60 ksi (330 – 415 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 80,000 psi (125 – 550 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Corrosion Resistance | Excellent (marine / saltwater) to Good | Excellent | Good |
| Typical Applications | Bearings, bushings, marine hardware, heat exchanger tubes, instrument components, pump sleeves | Plumbing, HVAC, refrigeration lines, hydraulic tubes, bus bars, roofing, compressed air lines | Decorative handrails, architectural trim, furniture tubing, heat exchanger tubes, musical instruments, condenser tubes |
