Pancake Coil Copper Tube
C11000 Electrolytic Tough Pitch (ETP) Copper
Short Description:
Standards: ASTM B-187, ASTM B-124, ASTM B-133, SAE 461, SAE J461, SAE J463, AMS 4500, DIN 2.0065
C11000 Electrolytic Tough Pitch (ETP) Copper is known for its high electrical and thermal conductivity, good corrosion resistance and solderability. C11000 copper is used for welding fixtures, anodes, bus bar in electrical power installations, ground straps, commutators and current-carrying hardware. Its inherent fabrication qualities readily permit it to be bent, soldered, drilled, peened, riveted and formed to fit almost any design specification. This copper has excellent hot workability.
Send email to us
Download as PDF

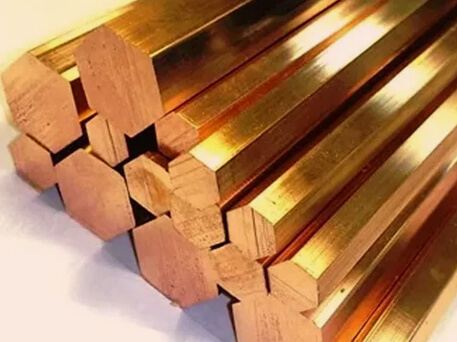

| Bronze, Copper & Brass Hexagonal Bars (Hex Bars) | |||
| Parameter | Bronze Hex Bar (C93200 / C95400) | Copper Hex Bar (C11000 / C12200) | Brass Hex Bar (C36000 / C38500) |
| Material Type | Bearing Bronze / Aluminum Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Free-Cutting Brass / Architectural Bronze |
| Standard | ASTM B505 | ASTM B187 / B124 | ASTM B16 / B453 |
| Across Flats (A/F) Size | 1/4" to 3" (6 mm to 76 mm) | 1/8" to 2" (3 mm to 51 mm) | 1/8" to 4" (3 mm to 102 mm) |
| Length | 13" (330 mm) or 6.5 ft (2 m) stock | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom |
| Temper Condition | As Cast / Annealed (O60) | Soft (Annealed – O60), Hard (H80) | Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 103,000 psi (240 – 710 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 65 ksi (330 – 450 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 52,000 psi (125 – 360 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Elongation (in 2") | 10 – 20 % * | 30 – 50 % | 15 – 25 % |
| Hardness (Brinell) | 65 – 220 HB * | 40 – 50 HB | 80 – 110 HB |
| Corrosion Resistance | Excellent (seawater) to Moderate * | Excellent | Good |
| Typical Applications | Nuts, valve stems, pump shafts, gears, bushings, heavy-duty fasteners | Grounding rods, electrical connectors, bus bar hardware, fasteners, terminals | Screw machine parts, nuts, bolts, valve components, fittings, gears, watch parts, ornamental hardware |
