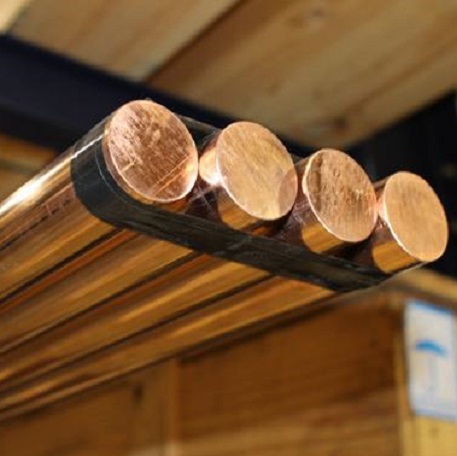

C10200 Oxygen Free Copper (CDA 102)

Short Description:

UNS CDA 102, SAE J461, ASTM B152, ASTM B187, ASTM B272

High Conductivity (OFHC) Copper characteristics are high ductility, high electrical and thermal conductivity, high impact strength, good creep resistance, ease of welding, and low volatility under high vacuum.

TYPICAL USES FOR C10200 OXYGEN FREE COPPER:

ELECTRICAL: Electrical Conductors, Klystrons, Microwave Tubes, Transistor Components, Lead In Wire, Coaxial Cables, Copper to Glass Seals in Electronic Appliances, Busbars, Bus Conductors, Wave Guides

INDUSTRIAL: Tubing, LP Gas Service, Tubing, Medical Gas- Oxygen, Vacuum Seals, Coaxial Tube, Billet Mold Tube, Extrusion Cans for Powder Metallurgy


Send email to us Download as PDF

Sizes Available From JMH

RECTANGLES / FLAT BAR: 1/8" - 2" thick through 1/2" - 8" wide

SQUARE BAR: 1/4" - 2" Square

ROUND BAR: 3/16" - 15" Diameter

Specifications

End ProductSpecification
Bands, Projectile RotatingMILITARY MIL-B-20292, MIL-B-18907
BarAMS 4602, ASME SB152, SB133, ASTM B152, SAE J463, J461
Bar, BusASTM B187, SAE J463, J461
Brazing Filler MetalFEDERAL QQ-B-650
FittingsASME B16.22
Foil, Printed CircuitsASTM B451
NipplesASTM B687
PipeASME SB42, ASTM B698, B42
Pipe, BusASTM B188
PlateAMS 4501, ASME SB152, ASTM B152, SAE J463, J461
Plate, CladASTM B432
RodAMS 4602, ASME SB152, ASTM B152, SAE J463, J461
Rod, BusASTM B187
ShapesAMS 4602, SAE J461, J463
Shapes, BusASTM B187
SheetAMS 4501, ASME SB152, ASTM B152, SAE J461, J463
Sheet, CladASTM B506
Sheet, Printed CircuitsASTM B451
StripAMS 4501, ASME SB152, ASTM B152, SAE J461, J463
Strip, CladASTM B506
Strip, Printed CircuitsASTM B451
TubeASTM B698
Tube, Air Conditioning and Refrigeration Field ServiceSAE J461, J463
Tube, BusASTM B188
Tube, CoilsASTM B743
Tube, CondenserASME SB111, ASTM B111
Tube, FinnedASME SB359, ASTM B359
Tube, Rectangular WaveguideASTM B372, MILITARY MIL-W-85
Tube, SeamlessASME SB75, ASTM B641, B75, MILITARY MIL-T-24107
Tube, Seamless Bright AnnealedASTM B68
Tube, Seamless for Air Conditioning and Refrigeration Field ServiceSAE J461, J463
Tube, Seamless for Torpedo UseMILITARY MIL-T-3235
Tube, U-BendASME SB395, ASTM B395
Tube, WeldedASTM B716, B641, B447, MILITARY MIL-T-24107, SAE J461, J463
Tube, Welded for Air Conditioning and Refrigeration ServiceASTM B640
Wire, Coated With Lead AlloyASTM B189
Wire, Coated With NickelASTM B355
Wire, Coated With SilverASTM B298
Wire, Coated With TinASTM B33, B246
Wire, FlatASTM B272
Wire, Hard DrawnASTM B1, FEDERAL QQ-W-343
Wire, Medium-Hard DrawnASTM B2, FEDERAL QQ-W-343
Wire, MetallizingMILITARY MIL-W-6712
Wire, SoftAMS 4701, ASTM B3, B738, B48, F9, FEDERAL QQ-W-343
Wire, StrandedASTM B8, B174, B470, B172, B173, B286, B496, B226, FEDERAL QQ-B-575
Chemical Composition


CUO
Min/Max99.95 min0.001
Nominals--

Temper

PRODUCT TYPETEMPER TYPE
Bands, Projectile RotatingMILITARY MIL-B-20292, MIL-B-18907
BarAMS 4602, ASME SB152, SB133, ASTM B152, SAE J463, J461
Bar, BusASTM B187, SAE J463, J461
Brazing Filler MetalFEDERAL QQ-B-650
FittingsASME B16.22
Foil, Printed CircuitsASTM B451
NipplesASTM B687
PipeASME SB42, ASTM B698, B42
Pipe, BusASTM B188
PlateAMS 4501, ASME SB152, ASTM B152, SAE J463, J461
Plate, CladASTM B432
RodAMS 4602, ASME SB152, ASTM B152, SAE J463, J461
Rod, BusASTM B187
ShapesAMS 4602, SAE J461, J463
Shapes, BusASTM B187
SheetAMS 4501, ASME SB152, ASTM B152, SAE J461, J463
Sheet, CladASTM B506
Sheet, Printed CircuitsASTM B451
StripAMS 4501, ASME SB152, ASTM B152, SAE J461, J463
Strip, CladASTM B506
Strip, Printed CircuitsASTM B451
TubeASTM B698
Tube, Air Conditioning and Refrigeration Field ServiceSAE J461, J463
Tube, BusASTM B188
Tube, CoilsASTM B743
Tube, CondenserASME SB111, ASTM B111
Tube, FinnedASME SB359, ASTM B359
Tube, Rectangular WaveguideASTM B372, MILITARY MIL-W-85
Tube, SeamlessASME SB75, ASTM B641, B75, MILITARY MIL-T-24107
Tube, Seamless Bright AnnealedASTM B68
Tube, Seamless for Air Conditioning and Refrigeration Field ServiceSAE J461, J463
Tube, Seamless for Torpedo UseMILITARY MIL-T-3235
Tube, U-BendASME SB395, ASTM B395
Tube, WeldedASTM B716, B641, B447, MILITARY MIL-T-24107, SAE J461, J463
Tube, Welded for Air Conditioning and Refrigeration ServiceASTM B640
Wire, Coated With Lead AlloyASTM B189
Wire, Coated With NickelASTM B355
Wire, Coated With SilverASTM B298
Wire, Coated With TinASTM B33, B246
Wire, FlatASTM B272
Wire, Hard DrawnASTM B1, FEDERAL QQ-W-343
Wire, Medium-Hard DrawnASTM B2, FEDERAL QQ-W-343
Wire, MetallizingMILITARY MIL-W-6712
Wire, SoftAMS 4701, ASTM B3, B738, B48, F9, FEDERAL QQ-W-343
Wire, StrandedASTM B8, B174, B470, B172, B173, B286, B496, B226, FEDERAL QQ-B-575


Mechanical Properties

TEMPERSECT. SIZECOLD WORKTYPE MINTEMPTENSILE STRENGTHYS
0.05% UL		YS
0.02% OFFSET		YS
0.005% OFFSET		ELONG.RH
B		RH
C		RH
F		RH
30T		VH
500		BH
500		BH
3000		SHEAR
STRGTH		FATIGUE
STRGTH		IZOD
IMPACT
STRGTH
-in.%-Fksiksiksiksi%BCF30T5005003000ksiksift-lb
-mm.--CMPaMPaMPaMPa--------MPaMPaJ
Flat Products
H020.04

684236----------2613
H0210TYP20290248--1440-8450---179900
M200.25

683210----------22-
M206.350TYP2022169--50--40----152-0
H040.25

685045----------28-
H046.350TYP20345310--1250-90----193-0
H100.04

685753----------29-
H1010TYP20393365--462-9564---200-0
H010.04

683830----------25-
H0110TYP20262207--2525-7036---172-0
H000.04

683628----------25-
H0010TYP20248193--3010-6025---172-0
OS0250.04

683411----------2311
OS02510TYP2023476--45--45----159760
H041

684540----------26-
H0425.40TYP20310276--2045-85----179-0
OS0500.25

683210----------22-
OS0506.350TYP2022169--50--40----152-0
H000.25

683628----------25-
H006.350TYP20248193--4010-60----172-0
H040.04

685045----------28-
H0410TYP20345310--650-9057---193-0
H080.04

685550----------2914
H0810TYP20379345--460-9463---200970
H010.25

683830----------25-
H016.350TYP20262207--3525-70----172-0
M200.04

683410----------23-
M2010TYP2023469--45--45----159-0
OS0500.04

683210----------22-
OS05010TYP2022169--45--40----152-0
Rod
OS0501

683210----------22-
OS05025.40TYP2022169--55--40----152-0
H040.25

685550----------29-
H046.3540TYP20379345--1060-94----200-0
H042.01

684540----------26-
H045116TYP20310276--2045-85----179-0
H041

684844----------27-
H0425.435TYP20331303--1647-87----186-0
M201

683210----------22-
M2025.40TYP2022169--55--40----152-0
Shapes
M300.5

683210----------22-
M3012.70TYP2022169--50--40----152-0
M200.5

683210----------22-
M2012.70TYP2022169--40--40----152-0
H040.5

684032----------26-
H0412.715TYP20276221--3035------179-0
OS0500.5

683210----------22-
OS05012.70TYP2022169--50--40----152-0
Tube
OS0250.06

683411----------23-
OS0251.650TYP2023476--45--45----159-0
H800.06

685550----------29-
H801.6540TYP20379345--860-9563---200-0
H550.06

684032----------26-
H551.6515TYP20276221--2535-7745---179-0
OS0500.06

683210----------22-
OS0501.650TYP2022169--45--40----152-0
Wire
H040.08

6855-----------29-
H0420TYP20379---1-------200-0
OS0500.08

6835-----------24-
OS05020TYP20241---35-------165-0
H080.08

6866-----------33-
H0820TYP20455---1-------228-0


Physical Properties

PRODUCT PROPERTYUS CUSTOMARYMETRIC
Coefficient of Thermal Expansion9.4 . 10 6? per å¡F (68-212 F)16.9 . 10 6? per å¡C (20-100 C)
Coefficient of Thermal Expansion9.6 . 10 6? per å¡F (68-392 F)17.3 . 10 6? per å¡C (20-200 C)
Coefficient of Thermal Expansion9.8 . 10 6? per å¡F (68-572 F)17.6 . 10 6? per å¡C (20-300 C)
Density0.323 lb/in3 @ 68 F8.94 gm/cm3 @ 20 C
Electrical Conductivity101%IACS @ 68 F0.591 MegaSiemens/cm @ 20 C
Electrical Resistivity10.3 ohms-cmil/ft @ 68 F1.71 microhm-cm @ 20 C
Melting Point Liquid US1981 F1083 C
Melting Point Solid US1981 F1083 C
Modulas of Elasticity in Tension17000 ksi117000 MPa
Modulas of Rigidity6400 ksi44130 MPa
Specific Gravity8.948.94
Specific Heat Capacity0.092 Btu/lb/å¡F at 68 F393.5 J/kg . å¡K at 293 K
Thermal Conductivity226.0 Btu . ft/(hr . Ft2 . å¡F) at 68 F391.1W/m . å¡K at 20 C


Fabrication

JOINING TECHNIQUESUITABILITY
BrazingExcellent
Butt WeldGood
Capacity for Being Cold WorkedExcellent
Capacity for Being Hot FormedExcellent
Coated Metal Arc WeldingNot Recommended
Forgeability Rating65
Gas Sheilded Arc WeldingGood
Machinability rating20
Oxyacetylene WeldingFair
Seam WeldNot Recommended
SolderingExcellent
Spot WeldNot Recommended
