Pancake Coil Copper Tube
C65100 Low Silicon Bronze "B"
Short Description:
C65100 is an engineering alloy at least as resistant to corrosion as copper itself, but much stronger, and with good fatigue endurance. 651 Bronze is an alloy noted for its brazeability, strength, corrosion resistance, and electrical properties. C65100 is one of the most weldable copper alloys. It is readily joined by all types of resistance welding. Joining by soldering or brazing is excellent. Joining by gas shielded arc welding and spot welding is also excellent, and by oxyacetylene welding, good.
Send email to us
Download as PDF

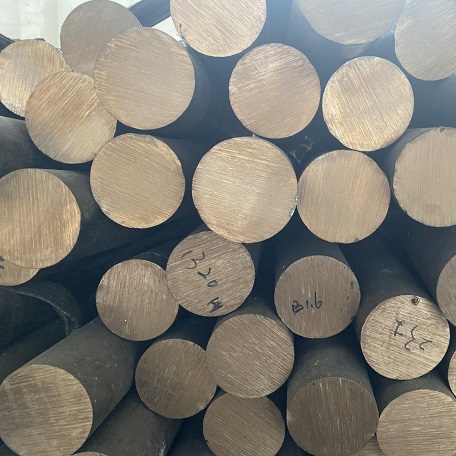

| Bronze, Copper & Brass Round Bars | |||
| Parameter | Bronze Round Bar (C93200 / C95400) | Copper Round Bar (C11000 / C12200) | Brass Round Bar (C36000 / C38500) |
| Material Type | Bearing Bronze / Aluminum Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Free-Cutting Brass / Architectural Bronze |
| Standard | ASTM B505 / B124 | ASTM B187 / B124 | ASTM B16 / B453 |
| Diameter Range | 1/8" to 12" (3 mm to 305 mm) | 1/8" to 6" (3 mm to 152 mm) | 1/8" to 6" (3 mm to 152 mm) |
| Length | 13" (330 mm) or 6.5 ft (2 m) stock | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom |
| Temper Condition | As Cast / Annealed (O60) | Soft (Annealed – O60), Half-Hard (H58), Hard (H80) | Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 103,000 psi (240 – 710 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 65 ksi (330 – 450 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 52,000 psi (125 – 360 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Hardness (Brinell) | 65 – 220 HB * | 40 – 50 HB | 80 – 110 HB |
| Corrosion Resistance | Excellent (seawater) to Moderate * | Excellent | Good |
| Typical Applications | Bearings, bushings, worm gears, valve stems, pump shafts, heavy-duty pins, marine hardware | Electrical connectors, grounding rods, bus bars, heat exchanger tubes, decorative hardware, fasteners | Screw machine parts, gears, nuts, bolts, valve bodies, fittings, instrument components, ornamental trim |
