Pancake Coil Copper Tube

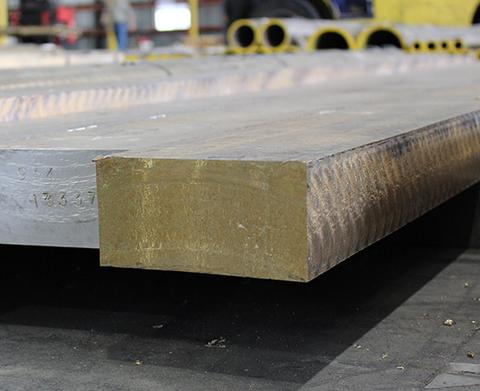

C92200 Leaded Tin Bronze "Navy M"
Short Description:
Typical Uses for C92200 Leaded Tin Bronze "Navy M":
ARCHITECTURE: Ornamental Castings
BUILDING: Cooling Equipment, Heating Equipment
FASTENERS: Nuts
INDUSTRIAL: Fittings Used to 550 F, Gears, Bushings, Bearings, Pump Impellers, Pumps Used to 550 F, Cryogenic Valves, Valves for Water Meters, Medium Pressure Hydraulic Equipment, Piston Rings, Valve Components
MARINE: Marine Castings
PLUMBING: Medium Pressure Steam Equipment to 550 F
Send email to us
Download as PDF
| Technical Specifications: Copper, Brass & Bronze Square Bars | |||
| Parameter | Copper (C110 / C101) | Brass (C360 / C385) | Bronze (C932 / C954) |
| Material Type | Electrolytic Tough Pitch (ETP) / Oxygen-Free (OF) | Leaded / Architectural (Free-Cutting) | Bearing / Aluminum (High-Strength) |
| Standard | ASTM B187 / B5 | ASTM B16 / B453 | ASTM B505 / B148 |
| Size Range (A/F) | 1/8" to 6" (3 mm to 152 mm) | 1/8" to 4" (3 mm to 102 mm) | 1/4" to 6" (6 mm to 152 mm) |
| Length | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom |
| Tensile Strength (Ultimate) | 30 – 34 ksi (210 – 235 MPa) | 48 – 60 ksi (330 – 415 MPa) | 65 – 90 ksi (450 – 620 MPa) |
| Hardness (Brinell) | 40 – 50 HB | 80 – 100 HB | 150 – 210 HB |
| Density | 0.323 lb/in³ (8.94 g/cm³) | 0.307 lb/in³ (8.50 g/cm³) | 0.318 lb/in³ (8.80 g/cm³) |
| Electrical Conductivity | 95 – 101 % IACS | 26 – 28 % IACS | 12 – 15 % IACS |
| Corrosion Resistance | Excellent | Good | Excellent (Saltwater/High) |
| Machinability Rating | 20% | 80 – 100 % | 40 – 70 % |
