C64200, C642 Silicon Aluminum Bronze (AMS 4634)
Short Description:

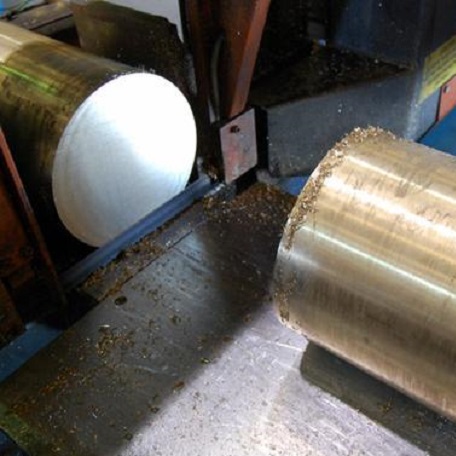

C64200 Silicon Aluminum Bronze is an engineering alloy at least as resistant to corrosion as copper itself, but much stronger. CDA 642 bronze is manufactured mostly in the form of round, hexagonal, and octagonal rods for hot forming and free machining. C642 is considered to be of the best valve stem alloys. Other applications include gears, marine hardware, nuts, pole line hardware, and valve bodies and components.
Send email to us
Download as PDF
| Bronze, Copper & Brass Square Bars | |||
| Parameter | Bronze Square Bar (C93200 / C95400) | Copper Square Bar (C11000 / C12200) | Brass Square Bar (C36000 / C38500) |
| Material Type | Bearing Bronze / Aluminum Bronze | Electrolytic Tough Pitch (ETP) / Phosphorus Deoxidized | Free-Cutting Brass / Architectural Bronze |
| Standard | ASTM B505 / B124 | ASTM B187 / B124 | ASTM B16 / B453 |
| Size Range (A/F) | 1/4" to 4" (6 mm to 102 mm) | 1/8" to 4" (3 mm to 102 mm) | 1/8" to 4" (3 mm to 102 mm) |
| Length | 13" (330 mm) or 6.5 ft (2 m) stock | 12 ft (3.66 m) or Custom | 12 ft (3.66 m) or Custom |
| Temper Condition | As Cast / Annealed (O60) | Soft (Annealed – O60), Half-Hard (H58), Hard (H80) | Half-Hard (H02), Hard (H04) |
| Tensile Strength (Ultimate) | 35,000 – 103,000 psi (240 – 710 MPa) * | 30 – 38 ksi (210 – 260 MPa) | 48 – 65 ksi (330 – 450 MPa) |
| Yield Strength (0.5% Ext.) | 18,000 – 52,000 psi (125 – 360 MPa) * | 10 – 30 ksi (70 – 205 MPa) | 20 – 45 ksi (140 – 310 MPa) |
| Hardness (Brinell) | 65 – 220 HB * | 40 – 50 HB | 80 – 110 HB |
| Corrosion Resistance | Excellent (seawater) to Moderate * | Excellent | Good |
| Typical Applications | Bushings, valve seats, wear plates, pump components, guide blocks, heavy-duty fasteners | Bus bars, grounding squares, electrical connectors, heat sinks, decorative hardware, fasteners | Nuts, bolts, valve stems, lock components, gears, screw machine parts, ornamental trim, architectural hardware |
